Product Specification
|
Item |

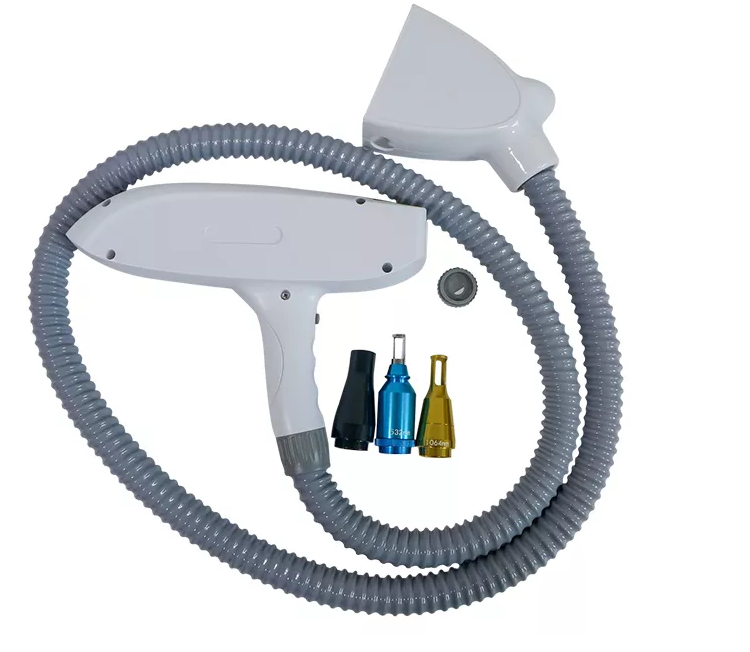

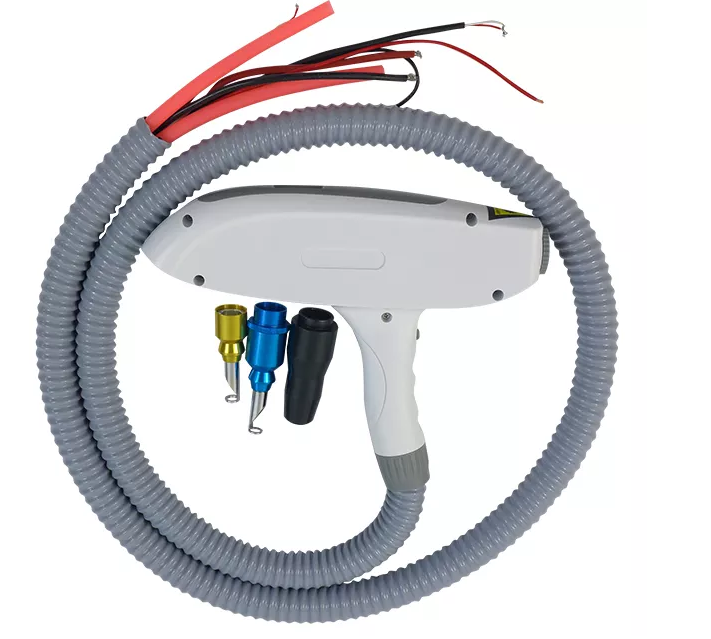

Q Switched Nd Yag laser hand piece |
|
Model |
ND Yag Laser Handpiece C |
|
Treatment head |
3 pcs/set (1064nm/532nm/1320nm) |
|
Wavelength |
1064nm/532nm/1320nm |
|
laser xenon lamp |
6*75*130, 140mm with caps, 100,000-200,000 shots even reach 500,000-1000,000 shots, till cannot use. |
|
Laser Crystal Rod |
5*7*75*135-145 ( yellow and pink optional) |
|
Hose |
Steel Wire Plastic Hose |
|
Counter |
Yes |
|
Connector |
Optional |
|
Cooling method |
Flowing water cooling |
|
Infrared ray |
Yes |
|
Foot pedal |
Optional |
|
Application |
1064nm: Remove and lighten speckles, age-spots, sun-burn spots and black and blue tattoo |

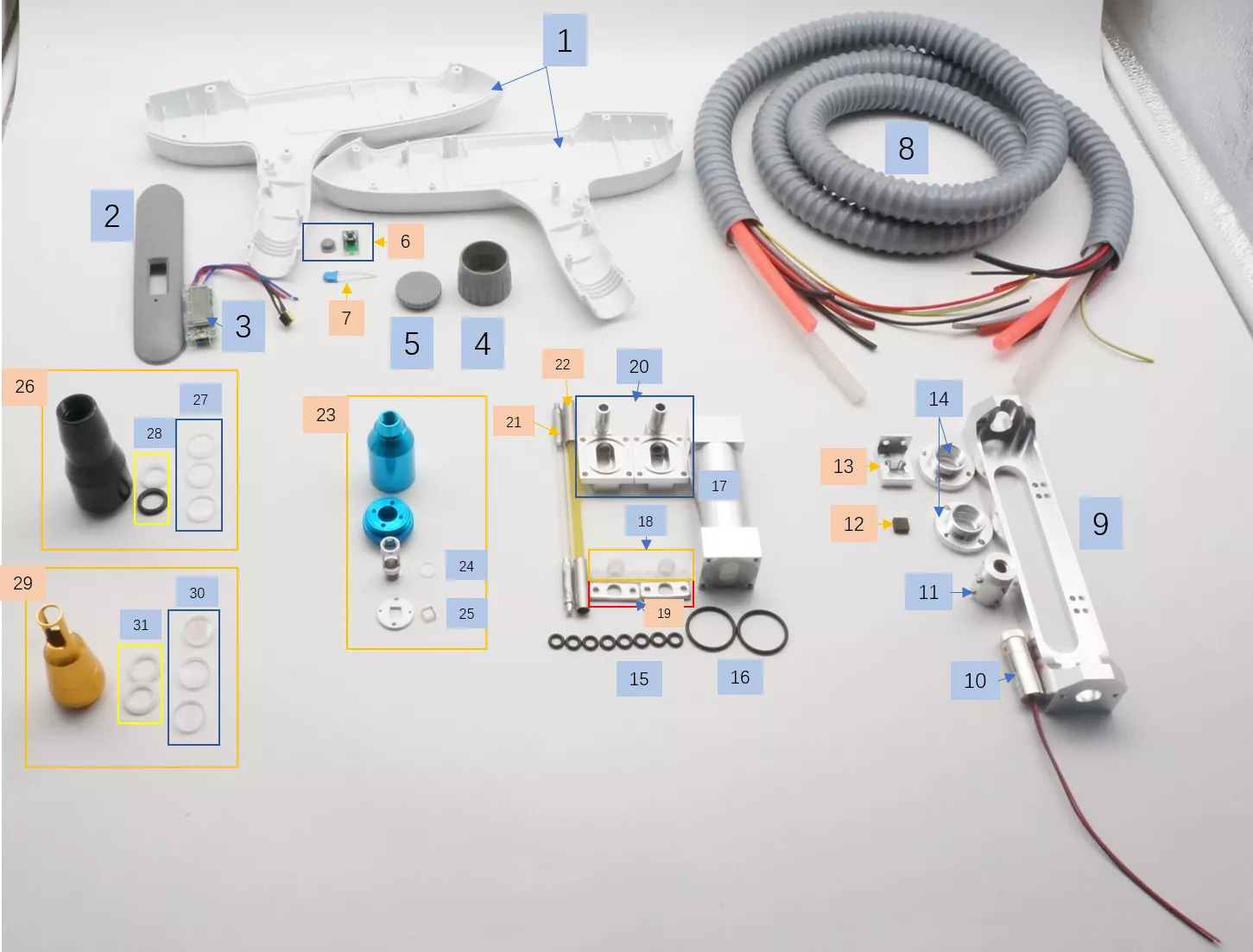

1. hand piece shell
2. counter window cover
3. digital counter
4. handle screw
5. handle cap
6. handle button
7. capacitor for ground wire
8. hose with cables and tubes
9. cavity metal frame
10. Yag laser infrared indicator
11. infrared indicator support
12. Tetravalent
13. 7-shaped iron block for fixing Tetravalent
14. fixing part for Yag laser mirror
15. O ring ID 5mm for xenon lamp and laser rod
16. O ring ID 24mm for cavity main part
17. cavity main part
18. lamp cap
19. laser rod cap
20. Aluminum terminal
21. Yag laser xenon lamp OD6mm*AL75mm*OL130mm
22. Yag laser crystal rod

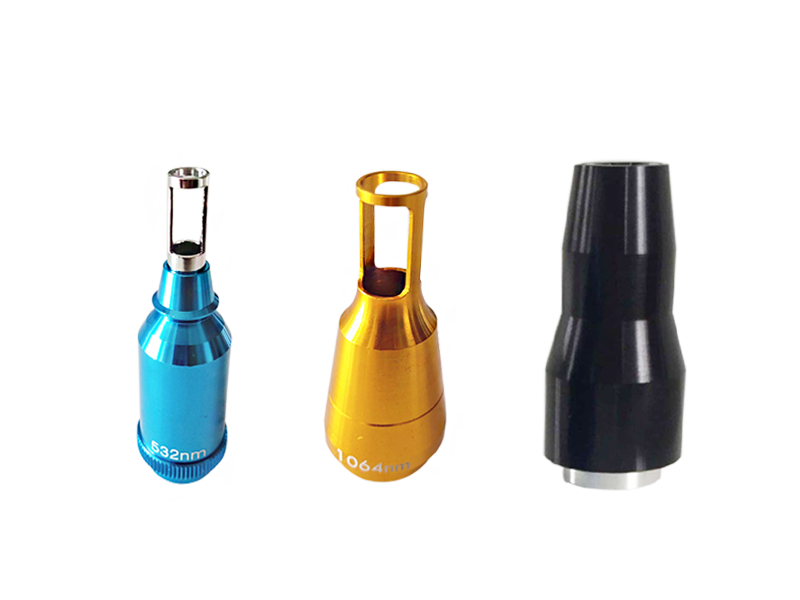

23. Yag laser tip 532nm
24. filter glass for Yag laser tip 532nm
25. KPT
26. Yag laser tip Black doll
27. filter glasses for Yag laser tip Black doll
28. O ring for Yag laser tip Black doll
29. Yag laser tip 1064nm
30. filter glasses for Yag laser tip 1064nm
31. O ring for Yag laser tip 1064nm
